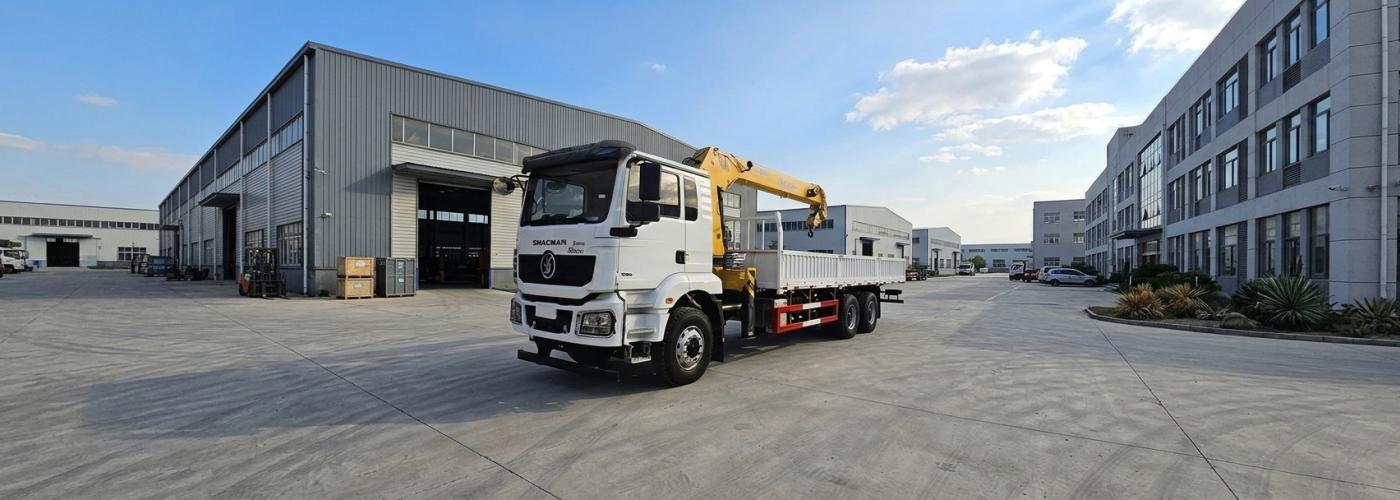

The SHACMAN H3000 6×4 Boom Truck is designed for demanding transport and specialized worksite applications. With a 385 HP Cummins Euro V diesel engine and a 6×4 drivetrain, it offers a robust platform for construction, industrial, infrastructure, and commercial operations.

With a gross vehicle weight of up to 40 tonnes, a 12-speed manual transmission, and a durable chassis, the SHACMAN H3000 is well-suited for heavy-duty boom truck applications. Power steering, a compressed-air braking system, and driver-focused cabin features enhance its performance in commercial and worksite environments.

Carmel Group KSA invites businesses in Saudi Arabia interested in the SHACMAN H3000 6×4 Boom Truck to contact our team for details on specifications, boom configurations, pricing, and availability.

SHACMAN H3000 6×4 Boom Truck – Main Specifications

• Model: SHACMAN H3000 6×4 Boom Truck
• Engine: Cummins ISM E5, six-cylinder inline, water-cooled turbocharged diesel
• Maximum power: 385 HP (280 kW)
• Maximum torque: 1,825 Nm at 1,200 rpm
• Engine displacement: 10.8 litres
• Emission standard: Euro V
• Transmission: FAST GEAR 12JSD200T-B manual gearbox
• Gears: 12 forward and 2 reverse
• Gross Vehicle Weight (GVW): Up to 40 tonnes
• Complete kerb mass: 12,000 kg
• Overall dimensions: 12,300 × 2,600 × 3,800 mm
• Wheelbase: 5,775 + 1,400 mm
• Front axle: HANDE MAN, 7,500 kg
• Rear axles: HANDE MAN, 16,000 kg each
• Fuel tank: 400-litre aluminium alloy tank
• Tyres: 315/80R22.5



Key Features of the SHACMAN H3000 Boom Truck

• Powerful 385 HP Cummins Engine

The SHACMAN H3000 features a 10.8-litre Cummins ISM E5 diesel engine delivering 385 HP and 1,825 Nm of torque at 1,200 rpm. This powertrain meets the demands of heavy-duty operations.

Engine output and torque are critical factors for businesses evaluating boom trucks for industrial and construction applications.

• 12-Speed Manual Transmission

The FAST GEAR 12JSD200T-B gearbox offers 12 forward and two reverse gears, providing versatile gear ratios for varied driving and heavy-duty transport needs.

The SHACMAN H3000 also features a 430 mm diaphragm-spring clutch, as detailed in the technical sheet.

• Heavy-Duty 6×4 Chassis

The 6×4 configuration and double-plate chassis frame are engineered for heavy-duty applications. Specifications include an 850 × 300 mm chassis frame with 8+5+8 construction and HANDE MAN heavy-duty axles.

These chassis and axle specifications are essential when assessing suitability for specialized body installations and worksite use. Final suitability depends on the installed boom, axle loads, and approved configuration.

• Compressed-Air Braking System

The SHACMAN H3000 uses a dual-circuit compressed-air service braking system with drum brakes. The technical sheet also lists a spring-operated parking brake acting on the rear wheels and a WABCO 4ABS auxiliary braking system.

These braking features are relevant considerations for businesses assessing a heavy-duty truck for commercial and industrial operations.

• Power Steering and Leaf-Spring Suspension

The truck is equipped with integral circulating-ball power steering with ZF8098 technology and multi-plate leaf-spring suspension on both the front and rear axles. These components form part of the vehicle’s heavy-duty chassis and handling setup. Actual performance depends on the operating environment, load distribution, and selected boom configuration.

Applications of the SHACMAN H3000 6×4 Boom Truck

The SHACMAN H3000 suits specialised commercial applications that require a heavy-duty chassis for boom-mounted equipment. The application depends on the boom type, lifting capacity, working radius, and approved installation.

Construction and infrastructure businesses can consider the H3000 for boom truck configurations tailored to material handling and worksite support. The boom’s rated capacity and operating limits must align with intended tasks.

• Industrial Equipment Handling

Industrial operators should select a properly configured boom truck for moving and positioning equipment or materials, considering load weight, lifting radius, ground conditions, and manufacturer instructions.

• Commercial and Specialised Transport

The H3000’s heavy-duty chassis and 6×4 drivetrain support specialised commercial vehicle applications. Businesses should assess the full vehicle configuration for transportation, equipment installation, and operational needs. With the right equipment installed, a suitably configured truck can support selected worksite and utility operations. Confirm the equipment type, reach, lifting chart, and required safety systems before choosing the vehicle for a particular job.

Designed for Heavy-Duty Business Operations

• Driver Cabin and Convenience Features

The SHACMAN H3000 includes the standard H3000 roof cab with features such as a hydraulic-suspension driver seat, seat-belt reminder, reverse buzzer, MP3 radio, and electrically operated manual cab tilting.

• Axles and Chassis Construction

The vehicle specification includes a 7,500 kg front axle and two 16,000 kg rear axles. The double-plate chassis frame is designed for heavy-duty use, but the allowable payload and axle loading must be confirmed for the completed boom truck.

Verify these components on the final vehicle to ensure the protection package meets requirements for the intended working environment.

Why Choose Carmel Group KSA?

The SHACMAN H3000 6×4 Boom Truck combines a 385 HP Cummins engine, heavy-duty chassis, and 12-speed manual transmission to support demanding commercial and industrial operations. It is a strong option for businesses that need a heavy-duty truck for construction, material handling, and specialised worksite applications.

Carmel Group KSA supports businesses in Saudi Arabia with commercial vehicle purchasing. Contact our team to discuss your requirements, confirm specifications, request pricing, and check availability for Heavy-Duty Operations!

Equip Your Business for Heavy-Duty Operations!

The SHACMAN H3000 6×4 Boom Truck features a 385 HP Cummins Euro V engine, a 12-speed manual gearbox, a heavy-duty chassis, and a 400-litre fuel tank. These specifications make it suitable for businesses that need a heavy-duty truck for specialised lifting, material handling, and worksite applications.

Whether you are sourcing a vehicle for construction, industrial, or specialized commercial applications, selecting the right boom configuration is essential to meet requirements safely and effectively. Contact our team to request a quotation, discuss your intended application, and confirm vehicle availability and boom equipment specifications.
